Round punches φ22.5-66.5mm in the 3.5mm mild steel
Whatsapp/Wechat：+8613586193125 Email:sales@hgtools.cn
Leave for: 中文版
Product Series

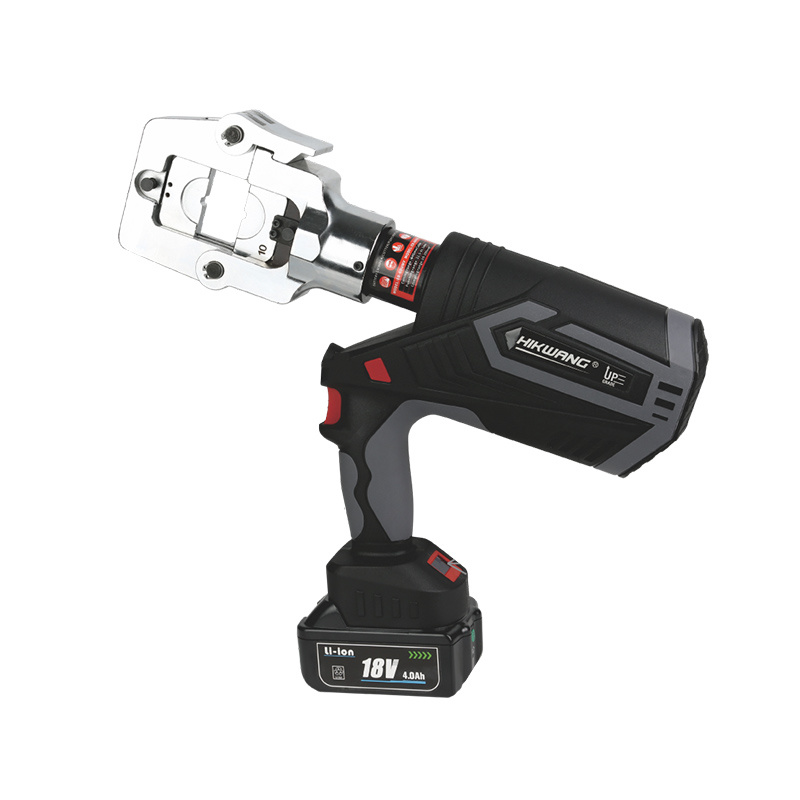

EB-60UNV
Classification:
keywords： EB-60UNV
Using liquid pressure to drive or operate equipment
E-mail:
Telephone:
Details
Hydraulic tools are tools that use liquid pressure to drive or operate equipment. This type of tool is widely used in various industries, such as construction, machinery, automobiles, etc. Hydraulic tools have many advantages, such as high efficiency, precision, lightweight, and durability. Its length can be customized according to different needs, ranging from as short as tens of centimeters to as long as several meters. Taking a common hydraulic lifting platform as an example, its length can reach up to two meters, making it easy to move and operate, and can withstand items weighing hundreds of kilograms. In addition, hydraulic tools are widely used in various pliers, presses, and power stations. In short, hydraulic tools are an indispensable part of modern industry, and their length varies depending on application requirements, providing great convenience for various operations.
Specificities

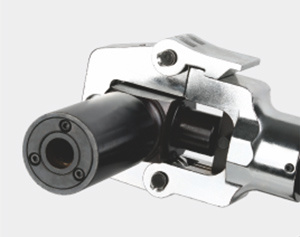

1. The head can be rotated 360°, double-speed double-action hydraulic device design.
2.Motor stops and returns automatically when crimping is complete, manual oil return if necessary.
3.18V4.0 high performance lithium battery, one switch can control all tool functions.
4. PVC shell laced with reinforced body is not easy to break.
5. Built-in overheating alarm device, motor overheating system will automatically cut off power to avoid damage.
Multi-functional
φ40mm Cu/Al cable and Ar moured Cu/Al cable
Crimping range 10-300mm²
| Product Data | |||||
| Force | 60kN | ||||
| Stroke | 42mm | ||||
| Crimping range | 10-300mm² | ||||
| Crimp/charge | 160times(Cu150mm²) | ||||
| Crimping cycle | 3s-15s(depend on the working type) | ||||
| Cutting range | 40mm max CuAl cable | ||||
| Cut/Charge | 70times | ||||
| Punching range | φ22.5-φ61.5mm | ||||
| Punch/Charge | 100times | ||||
| Voltage | 18v | ||||
| Capacity | 4.0Ah | ||||
| Charging time | 2hours | ||||
| Weight | approx.N.W.5.7kg G.W.21.7kg | ||||
| Package | plastic box | ||||
| Accessories | |||||
| Crimping Dies:10,16,25,35,50,70,95,120,150,185,240,300mm² | |||||
| Punch dies:φ22.5 φ28.3 φ34.6 φ43.2 φ49.6 φ61.5mm | |||||
| Battery：2pcs | Charger：1pc | Blade:1set | |||
safety system inside
